Brush Carrier and CarbonDust Collector for Horizontal Hy drogenerator

Brush Carrier and CarbonDust Collector for Horizontal Hy drogenerator

Preductln troducticn

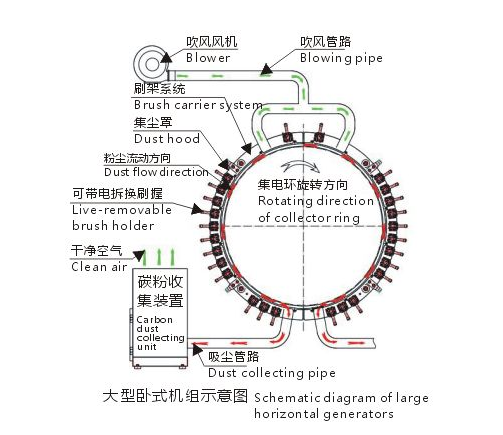

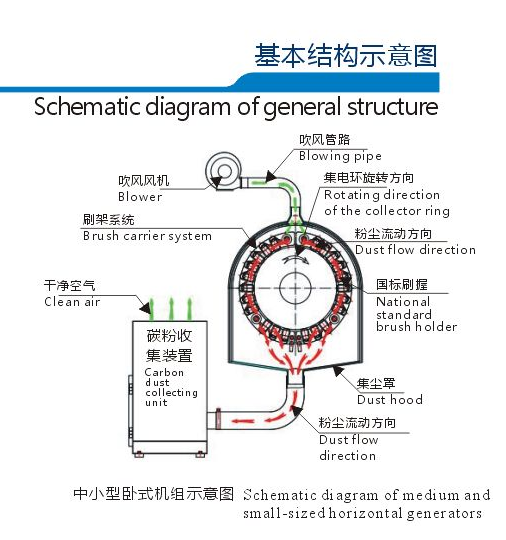

To eliminate hardcarbon dust collection in horizontal hy drogenerators,our company hasresearchedanddeveloped a special carbon dust collector for horizontal generating units whichhas been patented (patent No:ZL2009 2012 8625.0)Thecarbon cust collector comprises ofa bulb-inside collector ring, a collection hood, ablowing system, a pipeline system, a carbon dust collecting system and an electric control system.

Three Major Functions

1.Effective carbon dust collection

2.Effective cooling of the collector ring

3.Observation andreplacement of carbon brush without stopping the machine

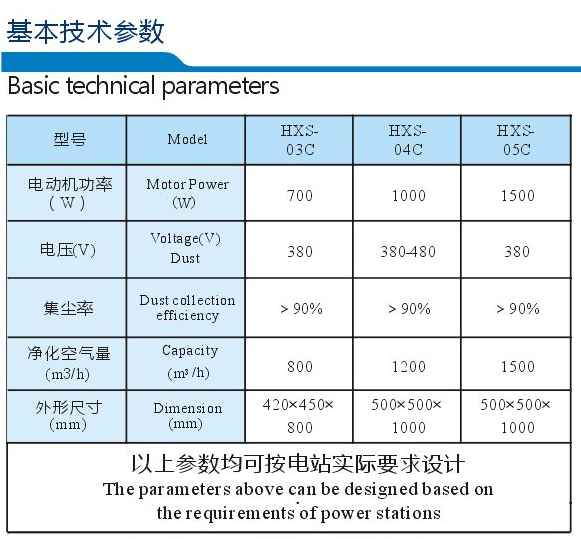

For Customization, parameters shall be specified

1.Unit capacity,excitation current, voltage

2.Collector ring diameter,external dimension ofthe upper frame

3.Brush support carrier connection andinterface sizes
